Washware Essentials Close Coupled DOC M Pack

Product Detail

Product Code INT-DMP-CCSTD

The Doc M WC packs complies with the approved Document M of the Building Regulations and BS8300:2009. The Doc M WC packs provides both left and right hand layouts without the need to specify right or left hand assemblies.

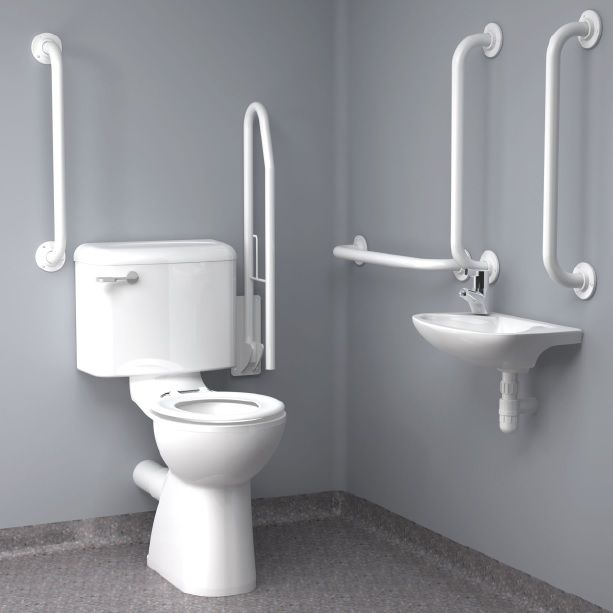

*NOTE. The picture illustrates a left hand layout, for right hand layouts this must be reversed.


Pack Contents

WC SUITE

• Close Coupled HO Pan.
• 6ltr Close Coupled Cistern & Spatula Lever.
• Seat Ring and Hinges.

BASIN

• 450mm Basin - 2 Tap Holes.
• 1 1/4" Basin Waste.
• Lever Operated Sequential Basin Mixer Tap.
• Bottle Trap.
• Wall Fixing Brackets.
• Tap hole stopper.

RAILS

• 600mm Support Rails (x 5).
• Hinged Support Rail with Toilet Roll Holder (x 1).

ADDITIONAL MANDATORY ITEMS NOT INCLUDED
Alarm Pull Cord With Two Red Bangles, Shelf & Facility for Limb Storage Mirror 400mm wide x 1000mm high fixed at a height of 800mm from the from floor to the bottom edge.

FIXING
It is essential that fixing instructions be followed, as the security of all items is vitally important. Walls onto which fittings are to be mounted must be suitable for the intended use of the applicable product. Appropriate fixings should be used which are suitable for the material of the fixing wall. For specialist fixings advise contact Fisher Fixings to ensure the correct fixings are used.

WC
Plugged and screwed to the floor (fixings not supplied).

Cistern
Wall Brackets plugged and screwed to the wall (fixings not supplied).

Basin
Mounted on brackets provided using suitable fixings (fixings not provided).

Basin Mixer Tap
Lever operated Basin Mixer tap.
Intatherm Thermostatic Basin Mixer Tap TMV3.

**All pictures shown are for illustration purpose only and may be subject to change without notice. Actual product may vary due to product enhancement.
All dimensions shown are for guidance only and may be subject to change or alteration without notice. All items manufactured or purchased separately from a third party to fit our products should be checked against the actual dimensions of the physical product before purchase. We will not be liable for third party costs and consequential loss associated with the items not fitting third party components.**
